61864 MA
61864 MA

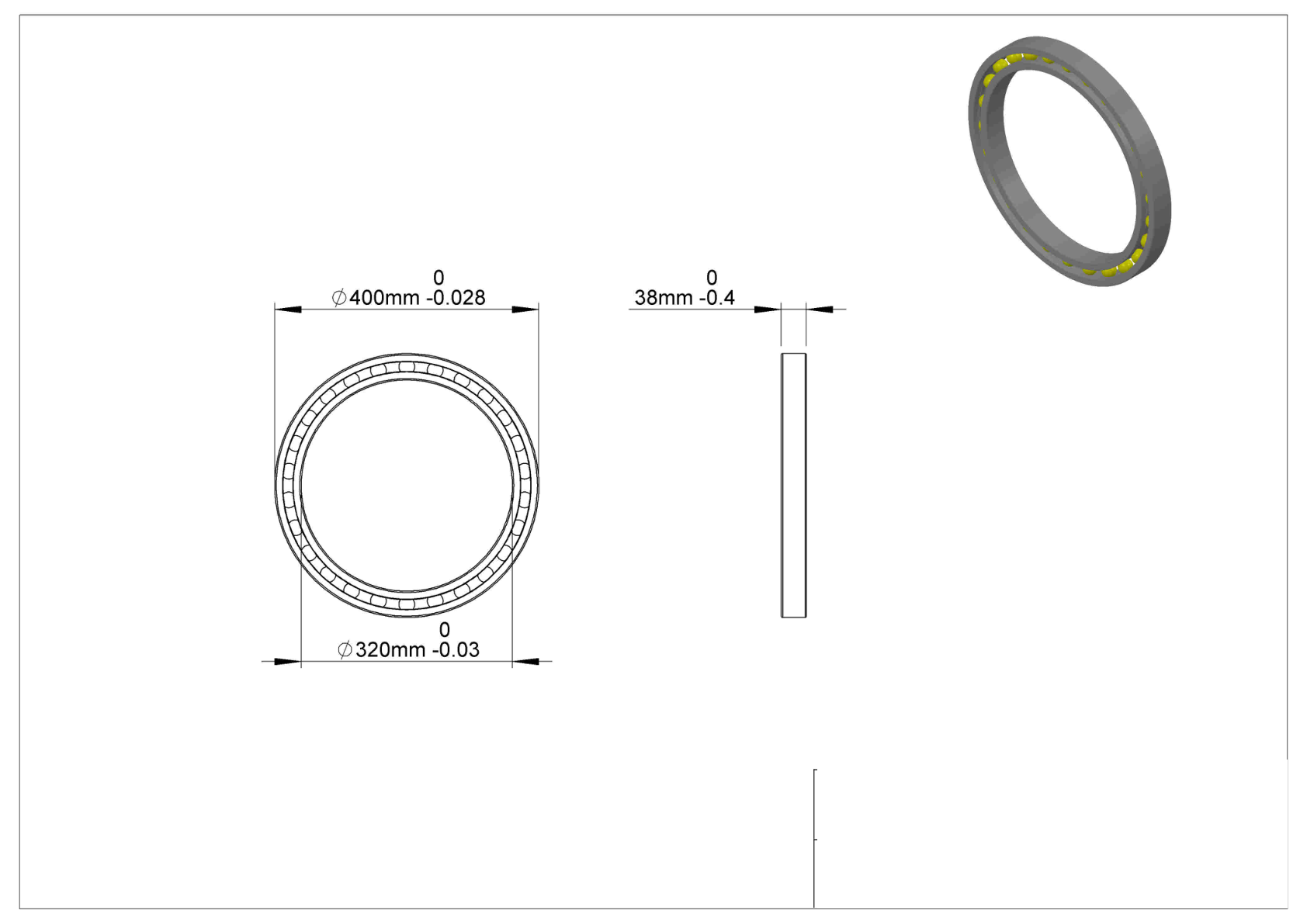

model 61864 MA
Metering system Metric system
Bearing Type Ball
Load Direction Radial
Structure Single Column
Seal Type Open
Inside Diameter 320 mm
Inner Diameter Tolerance -0.03mm to 0
Outer Diameter 400 mm
Outer Diameter Tolerance -0.028mm to 0
Width 38 mm
Width Tolerance -0.4mm to 0
Ferrule Material 51200 Chrome steel
Ball Material 51200 Chrome steel
Cage Material 300 Series Stainless Steel
Dynamic Radial Load 38667 lbf
Static Radial Load 57326 lbf
Max Speed(X1000 rpm) 2.4
Lubricant None
Temperature Range -30° to 120 °C
ABEC Standard P6
Radial Inner Clearance CN
RoHS Standard Conform
REACH Standard Conform
Weight 11 kg
