67887-67830 - Single Row Tapered Roller Bearings - Shandong Zhio bearing Technology Co., LTD

model	67887-67830
type	bearing
Cone Part Number	67887
Cup Part Number	67830
Metering System	Imperial
Bearing Type	Roller
Roller Bearing Type	Tapered roller
Load Direction	Radial force and axial force
Structure	Single Column
Seal Type	Open
Outer ring type	Standard Type
series	67800

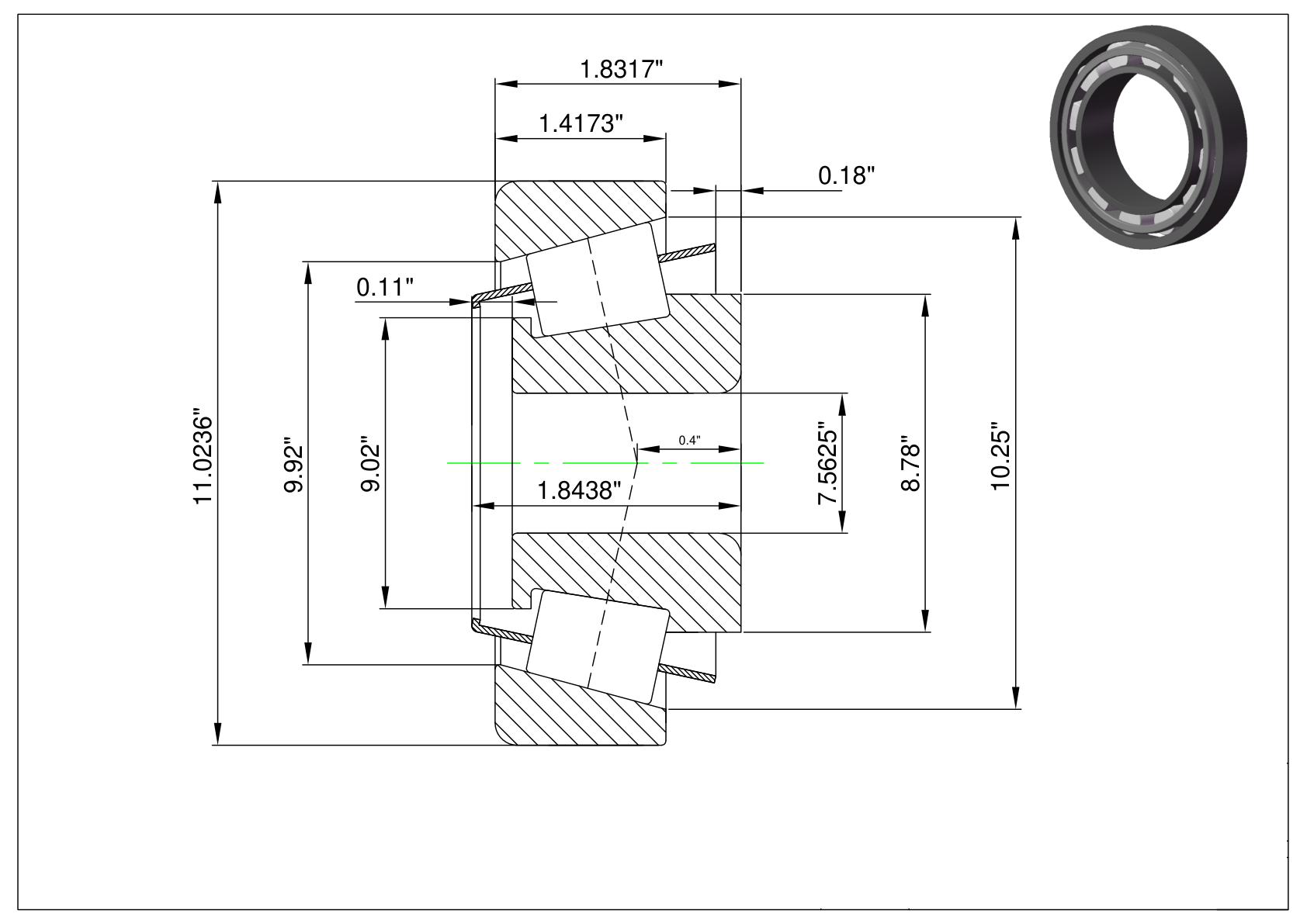

Inside Diameter	7.5625"
Inner Diameter Tolerance	+0.025" to 0
Outer Diameter	11.0236"
Outer Diameter Tolerance	+0.025" to 0
Cone Width	1.8438"
Cone Width	+0.076" to -0.254"
Cup width	1.4173"
Cup Width	+0.051" to -0.254"
Width	1.8317"
Width Tolerance	+0.356" to-0.254"
Cone back to clearance radius	0.410"
Cup back to cleaning radius	0.130"
Tapered Front Backing Diameter	9.02"
Tapered backing diameter	8.78"
Cup front backing diameter	10.25"
Cup backing diameter	9.92"
Cage cone front clearance	0.11"
Cage cone back clearance	0.18"
Effective central location	0.4"
Ferrule Material	51200 Chrome steel
Roller material	51200 Chrome steel
Cage Material	steel
Dynamic Radial Load	93600 lbf
Static Radial Load	188000 lbf
Dynamic Radial Rating (90 million rpm) (C90)	24300 lbf
Dynamic Thrust Rating (90 million rpm) (Ca90)	19800 lbf
Lubricant	Lubricant Added
Temperature Range	-30° to 110 °C
