H247536-H247510 - Single Row Tapered Roller Bearings - Shandong Zhio bearing Technology Co., LTD

model	H247536-H247510
type	bearing
Cone Part Number	H247536
Cup Part Number	H247510
Metering System	Imperial
Bearing Type	Roller
Roller Bearing Type	Tapered roller
Load Direction	Radial force and axial force
Structure	Single Column
Seal Type	Open
Outer ring type	Standard Type
series	H247500

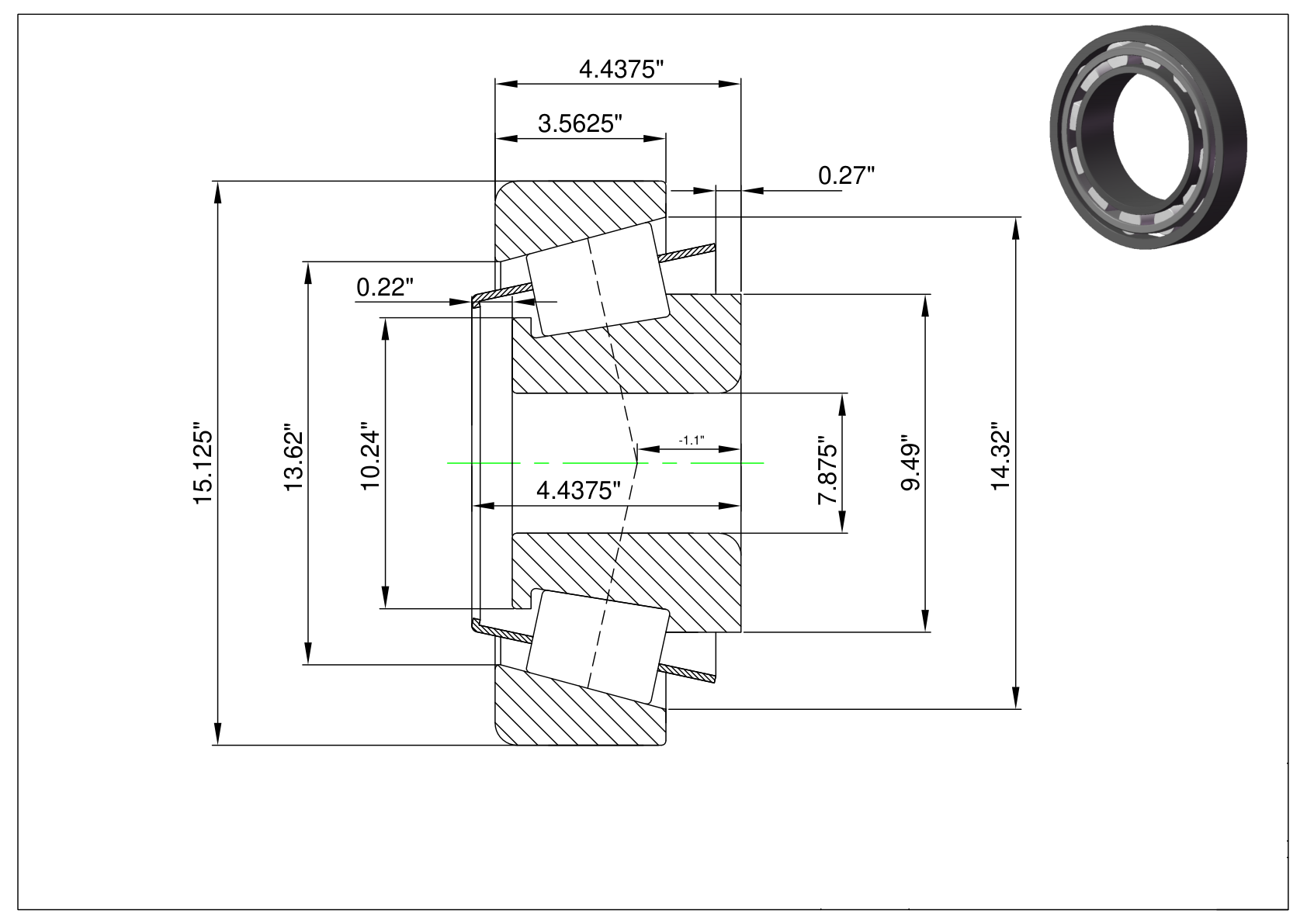

Inside Diameter	7.875"
Inner Diameter Tolerance	+0.025" to 0
Outer Diameter	15.125"
Outer Diameter Tolerance	+0.051" to 0
Cone Width	4.4375"
Cone Width	+0.076" to -0.254"
Cup width	3.5625"
Cup Width	+0.051" to -0.254"
Width	4.4375"
Width Tolerance	+0.356" to-0.254"
Cone back to clearance radius	0.25"
Cup back to cleaning radius	0.250"
Tapered Front Backing Diameter	10.24"
Tapered backing diameter	9.49"
Cup front backing diameter	14.32"
Cup backing diameter	13.62"
Cage cone front clearance	0.22"
Cage cone back clearance	0.27"
Effective central location	-1.1"
Ferrule Material	51200 Chrome steel
Roller material	51200 Chrome steel
Cage Material	Pin-Type
Dynamic Radial Load	398000 lbf
Static Radial Load	757000 lbf
Dynamic Radial Rating (90 million rpm) (C90)	103000 lbf
Dynamic Thrust Rating (90 million rpm) (Ca90)	58800 lbf
Lubricant	Lubricant Added
Temperature Range	-30° to 110 °C
