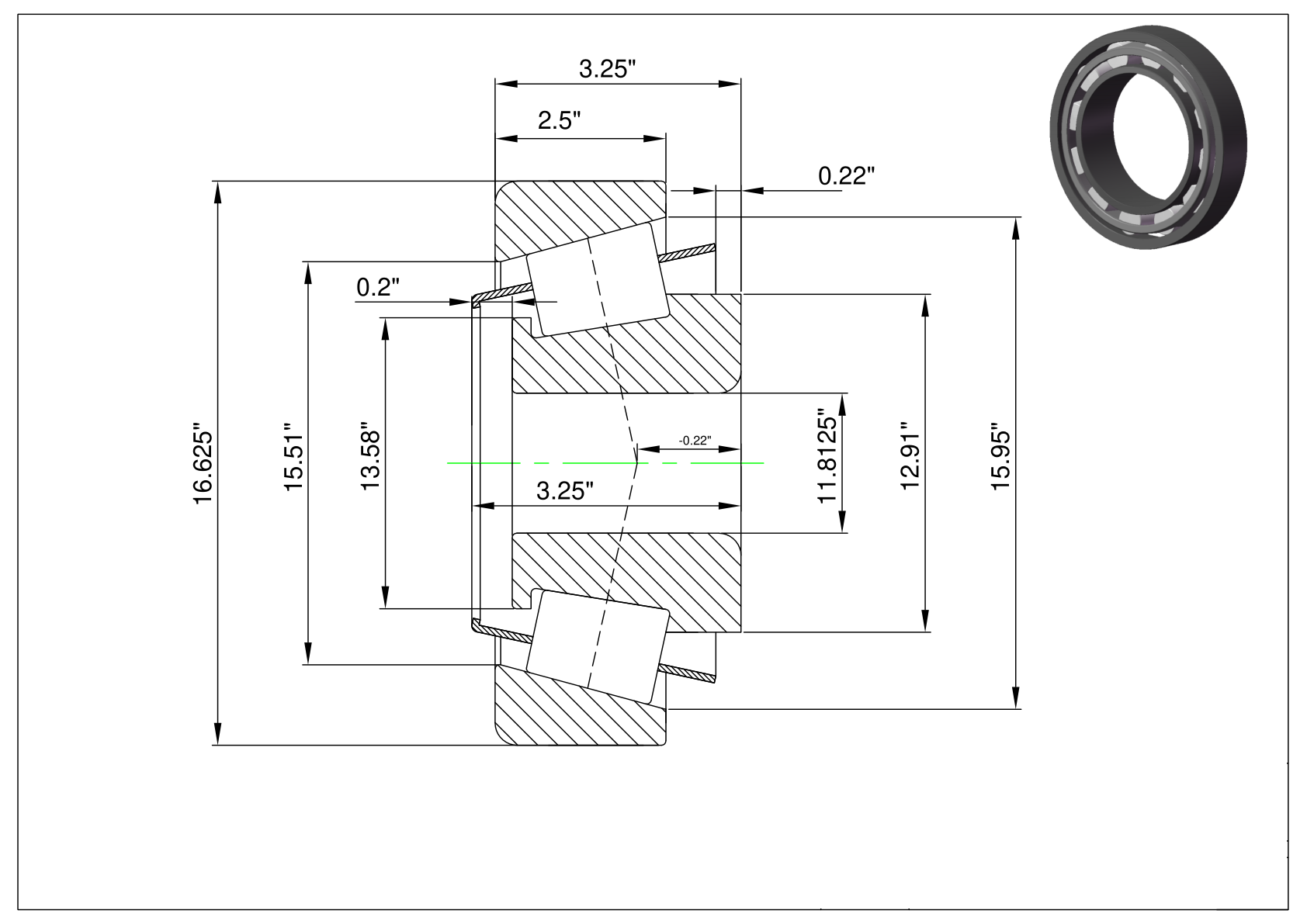

HM256849-HM256810 - Single Row Tapered Roller Bearings - Shandong Zhio bearing Technology Co., LTD

model	HM256849-HM256810
type	bearing
Cone Part Number	HM256849
Cup Part Number	HM256810
Metering System	Imperial
Bearing Type	Roller
Roller Bearing Type	Tapered roller
Load Direction	Radial force and axial force
Structure	Single Column
Seal Type	Open
Outer ring type	Standard Type
series	HM256800
Inside Diameter	11.8125"
Inner Diameter Tolerance	+0.025" to 0
Outer Diameter	16.625"
Outer Diameter Tolerance	+0.051" to 0
Cone Width	3.25"
Cone Width	+0.076" to -0.254"
Cup width	2.5"
Cup Width	+0.051" to -0.254"
Width	3.25"
Width Tolerance	+0.356" to-0.254"
Cone back to clearance radius	0.25"
Cup back to cleaning radius	0.130"
Tapered Front Backing Diameter	13.58"
Tapered backing diameter	12.91"
Cup front backing diameter	15.95"
Cup backing diameter	15.51"
Cage cone front clearance	0.2"
Cage cone back clearance	0.22"
Effective central location	-0.22"
Ferrule Material	51200 Chrome steel
Roller material	51200 Chrome steel
Cage Material	Pin-Type
Dynamic Radial Load	292000 lbf
Static Radial Load	622000 lbf
Dynamic Radial Rating (90 million rpm) (C90)	75600 lbf
Dynamic Thrust Rating (90 million rpm) (Ca90)	43600 lbf
Lubricant	Lubricant Added
Temperature Range	-30° to 110 °C
