EE175301-175350 - Single Row Tapered Roller Bearings - Shandong Zhio bearing Technology Co., LTD

model	EE175301-175350
type	bearing
Cone Part Number	EE175301
Cup Part Number	175350
Metering System	Imperial
Bearing Type	Roller
Roller Bearing Type	Tapered roller
Load Direction	Radial force and axial force
Structure	Single Column
Seal Type	Open
Outer ring type	Standard Type
series	175000

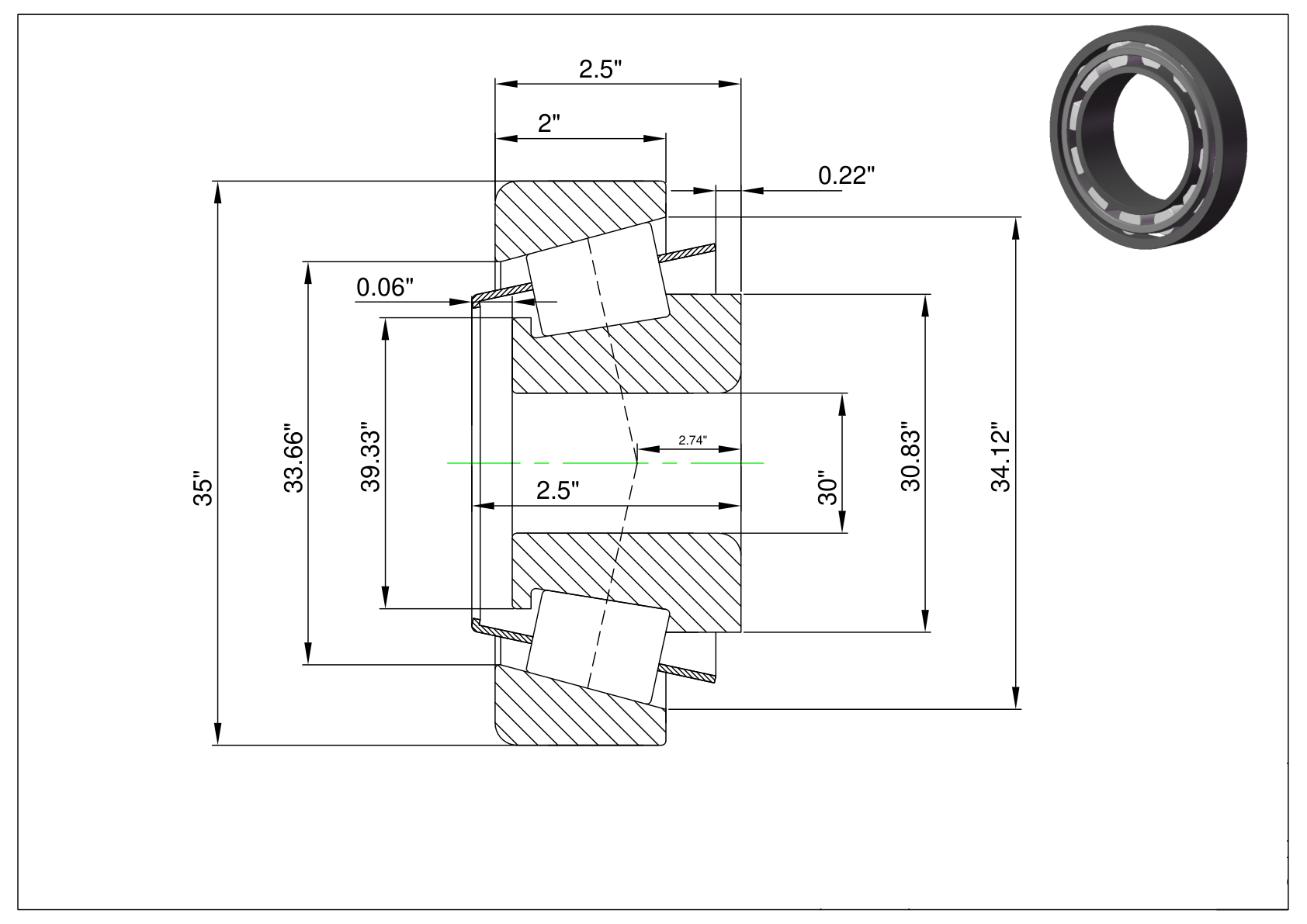

Inside Diameter	30"
Inner Diameter Tolerance	+0.076" to 0
Outer Diameter	35"
Outer Diameter Tolerance	+0.076" to 0
Cone Width	2.5"
Cone Width	+0.076" to -0.254"
Cup width	2"
Cup Width	+0.051" to -0.254"
Width	2.5"
Width Tolerance	+0.381" to-0.381"
Cone back to clearance radius	0.13"
Cup back to cleaning radius	0.130"
Tapered Front Backing Diameter	39.33"
Tapered backing diameter	30.83"
Cup front backing diameter	34.12"
Cup backing diameter	33.66"
Cage cone front clearance	0.06"
Cage cone back clearance	0.22"
Effective central location	2.74"
Ferrule Material	51200 Chrome steel
Roller material	51200 Chrome steel
Cage Material	steel
Dynamic Radial Load	243000 lbf
Static Radial Load	762000 lbf
Dynamic Radial Rating (90 million rpm) (C90)	62900 lbf
Dynamic Thrust Rating (90 million rpm) (Ca90)	40800 lbf
Lubricant	Lubricant Added
Temperature Range	-30° to 110 °C
