32210 - Single Row Tapered Roller Bearings - Shandong Zhio bearing Technology Co., LTD

model	32210
type	bearing
Cone Part Number	X32210M
Cup Part Number	Y32210M
Metering System	Metric System
Bearing Type	Roller
Roller Bearing Type	Tapered roller
Load Direction	Radial force and axial force
Structure	Single Column
Seal Type	Open
Outer ring type	Standard Type
series	32210M

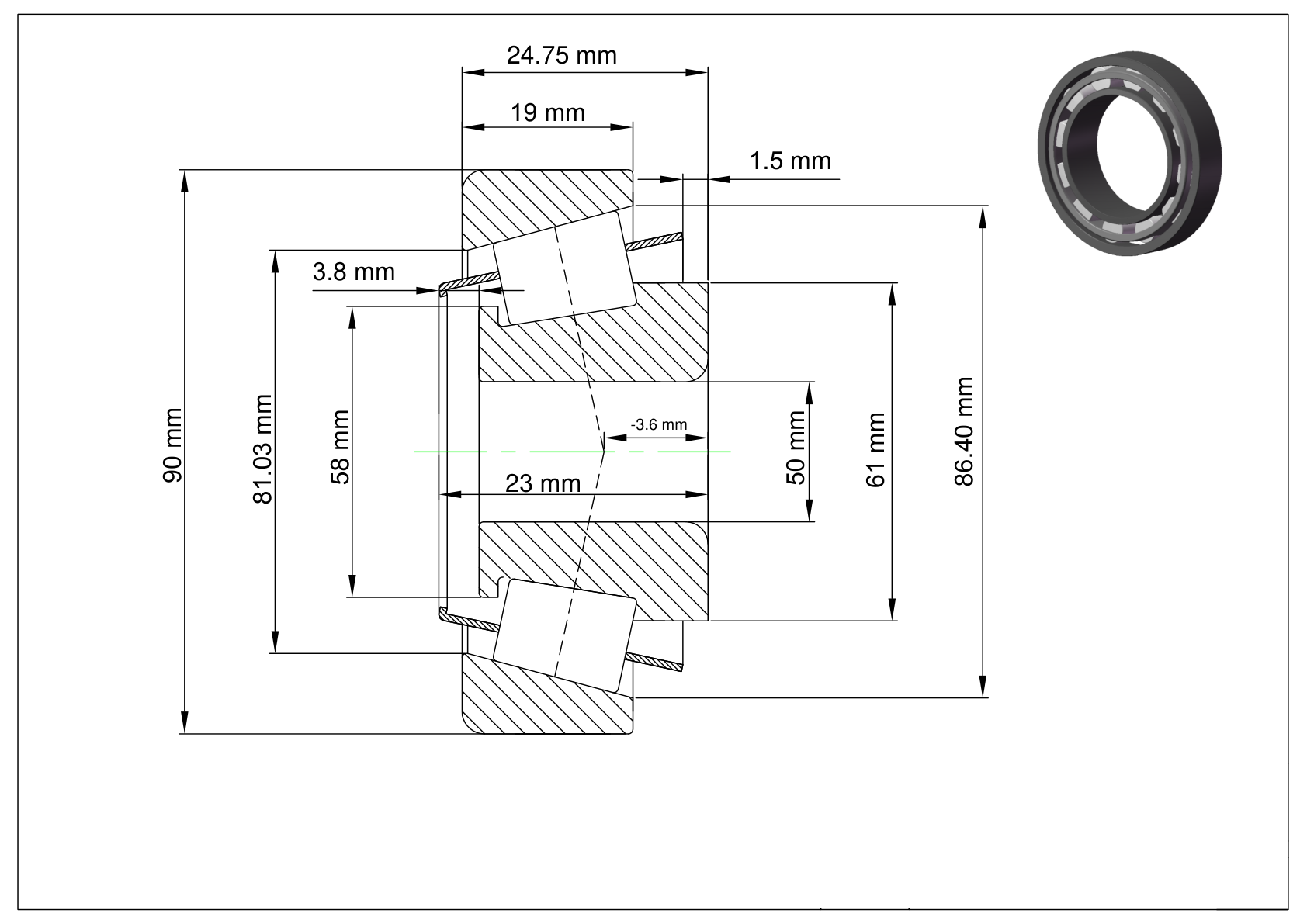

Inside Diameter	50 mm
Inner Diameter Tolerance	-0.012mm to 0
Outer Diameter	90 mm
Outer Diameter Tolerance	-0.018mm to 0
Cone Width	23 mm
Cone Width	-0.1mm to 0
Cup width	19 mm
Cup Width	-0.2mm to 0
Width	24.75 mm
Width Tolerance	+0.2mm to 0
Cone back to clearance radius	1.52 mm
Cup back to cleaning radius	1.52 mm
Tapered Front Backing Diameter	58 mm
Tapered backing diameter	61 mm
Cup front backing diameter	86.40 mm
Cup backing diameter	81.03 mm
Cage cone front clearance	3.8 mm
Cage cone back clearance	1.5 mm
Effective central location	-3.6 mm
Ferrule Material	51200 Chrome steel
Roller material	51200 Chrome steel
Cage Material	steel
Dynamic Radial Load	22455 lbf
Static Radial Load	26550 lbf
Dynamic Radial Rating (90 million rpm) (C90)	5827.5 lbf
Dynamic Thrust Rating (90 million rpm) (Ca90)	4185 lbf
Lubricant	Lubricant Added
Temperature Range	-30° to 110 °C
