JLM704649-JLM704610 - Single Row Tapered Roller Bearings - Shandong Zhio bearing Technology Co., LTD

model	JLM704649-JLM704610
type	bearing
Cone Part Number	JLM704649
Cup Part Number	JLM704610
Metering System	Metric System
Bearing Type	Roller
Roller Bearing Type	Tapered roller
Load Direction	Radial force and axial force
Structure	Single Column
Seal Type	Open
Outer ring type	Standard Type
series	LM704600

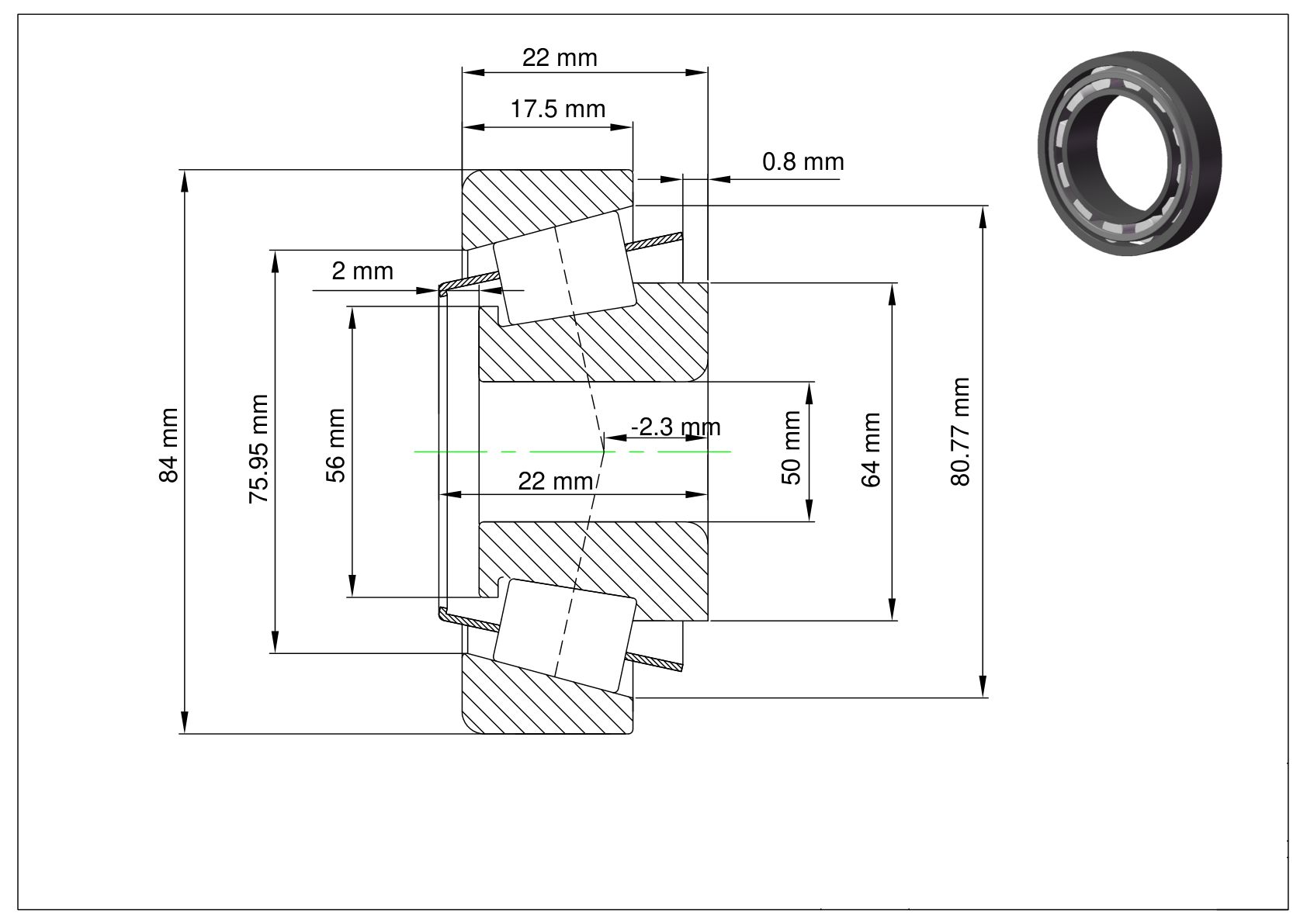

Inside Diameter	50 mm
Inner Diameter Tolerance	-0.012mm to 0
Outer Diameter	84 mm
Outer Diameter Tolerance	-0.018mm to 0
Cone Width	22 mm
Cone Width	-0.1mm to 0
Cup width	17.5 mm
Cup Width	-0.2mm to 0
Width	22 mm
Width Tolerance	+0.2mm to 0
Cone back to clearance radius	3.56 mm
Cup back to cleaning radius	1.52 mm
Tapered Front Backing Diameter	56 mm
Tapered backing diameter	64 mm
Cup front backing diameter	80.77 mm
Cup backing diameter	75.95 mm
Cage cone front clearance	2 mm
Cage cone back clearance	0.8 mm
Effective central location	-2.3 mm
Ferrule Material	51200 Chrome steel
Roller material	51200 Chrome steel
Cage Material	steel
Dynamic Radial Load	21712.5 lbf
Static Radial Load	23400 lbf
Dynamic Radial Rating (90 million rpm) (C90)	5625 lbf
Dynamic Thrust Rating (90 million rpm) (Ca90)	4207.5 lbf
Lubricant	Lubricant Added
Temperature Range	-30° to 110 °C
