JM205149A-JM205110 - Single Row Tapered Roller Bearings - Shandong Zhio bearing Technology Co., LTD

model	JM205149A-JM205110
type	bearing
Cone Part Number	JM205149A
Cup Part Number	JM205110
Metering System	Metric System
Bearing Type	Roller
Roller Bearing Type	Tapered roller
Load Direction	Radial force and axial force
Structure	Single Column
Seal Type	Open
Outer ring type	Standard Type
series	M205100

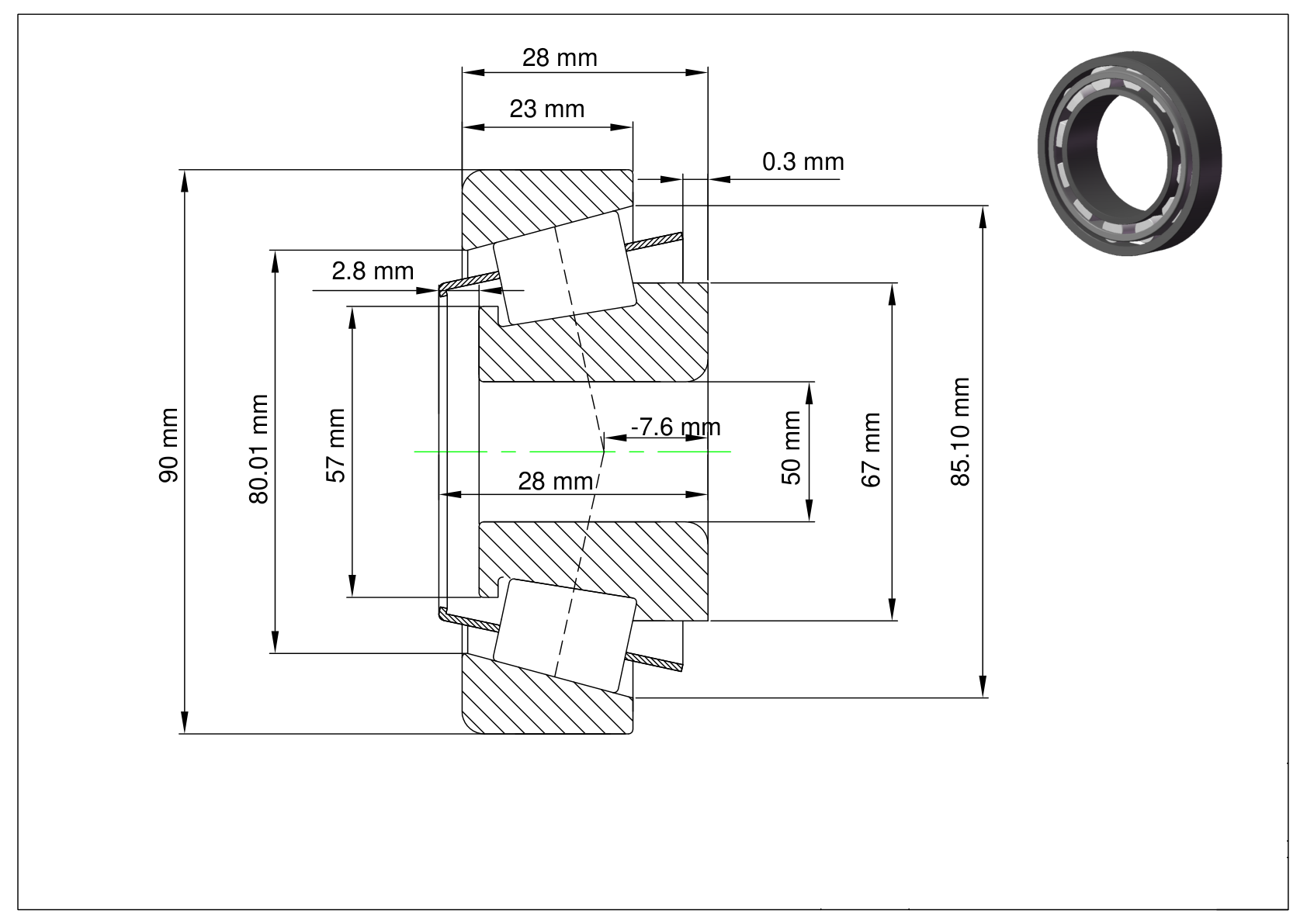

Inside Diameter	50 mm
Inner Diameter Tolerance	-0.012mm to 0
Outer Diameter	90 mm
Outer Diameter Tolerance	-0.018mm to 0
Cone Width	28 mm
Cone Width	-0.1mm to 0
Cup width	23 mm
Cup Width	-0.2mm to 0
Width	28 mm
Width Tolerance	+0.2mm to 0
Cone back to clearance radius	5.08 mm
Cup back to cleaning radius	2.54 mm
Tapered Front Backing Diameter	57 mm
Tapered backing diameter	67 mm
Cup front backing diameter	85.10 mm
Cup backing diameter	80.01 mm
Cage cone front clearance	2.8 mm
Cage cone back clearance	0.3 mm
Effective central location	-7.6 mm
Ferrule Material	51200 Chrome steel
Roller material	51200 Chrome steel
Cage Material	steel
Dynamic Radial Load	33075 lbf
Static Radial Load	34650 lbf
Dynamic Radial Rating (90 million rpm) (C90)	8550 lbf
Dynamic Thrust Rating (90 million rpm) (Ca90)	4815 lbf
Lubricant	Lubricant Added
Temperature Range	-30° to 110 °C
