XAB-32010X-Y32010X - Single Row Tapered Roller Bearings - Shandong Zhio bearing Technology Co., LTD

model	XAB-32010X-Y32010X
type	bearing
Cone Part Number	XAB-32010X
Cup Part Number	Y32010X
Metering System	Metric System
Bearing Type	Roller
Roller Bearing Type	Tapered roller
Load Direction	Radial force and axial force
Structure	Single Column
Seal Type	Open
Outer ring type	Standard Type
series	32010X

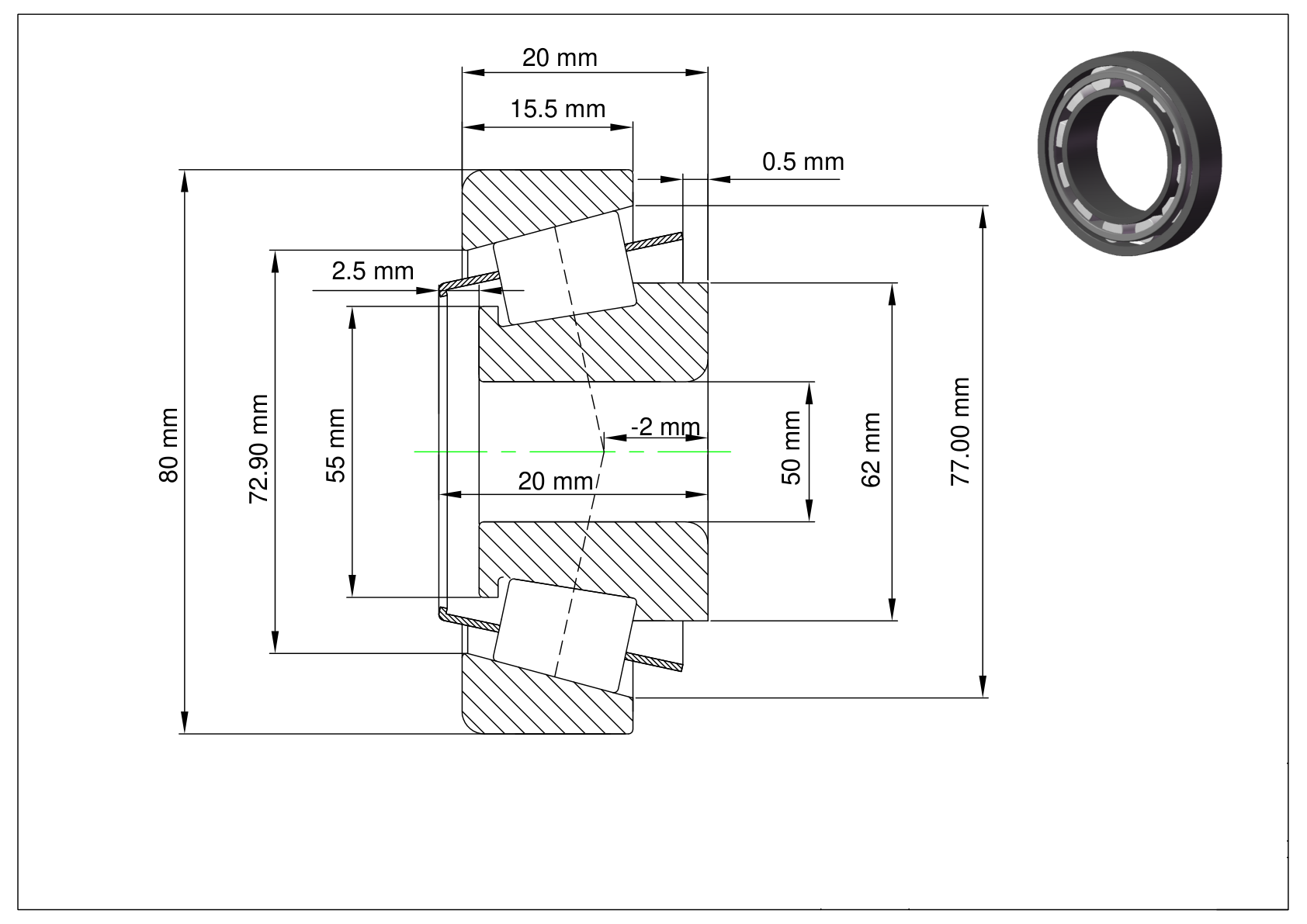

Inside Diameter	50 mm
Inner Diameter Tolerance	-0.012mm to 0
Outer Diameter	80 mm
Outer Diameter Tolerance	-0.016mm to 0
Cone Width	20 mm
Cone Width	-0.1mm to 0
Cup width	15.5 mm
Cup Width	-0.15mm to 0
Width	20 mm
Width Tolerance	+0.2mm to 0
Cone back to clearance radius	3.05 mm
Cup back to cleaning radius	1.02 mm
Tapered Front Backing Diameter	55 mm
Tapered backing diameter	62 mm
Cup front backing diameter	77.00 mm
Cup backing diameter	72.90 mm
Cage cone front clearance	2.5 mm
Cage cone back clearance	0.5 mm
Effective central location	-2 mm
Ferrule Material	51200 Chrome steel
Roller material	51200 Chrome steel
Cage Material	steel
Dynamic Radial Load	18607.5 lbf
Static Radial Load	20857.5 lbf
Dynamic Radial Rating (90 million rpm) (C90)	4837.5 lbf
Dynamic Thrust Rating (90 million rpm) (Ca90)	3487.5 lbf
Lubricant	Lubricant Added
Temperature Range	-30° to 110 °C
