X32021XSA-Y32021XSA - Single Row Tapered Roller Bearings - Shandong Zhio bearing Technology Co., LTD

model	X32021XSA-Y32021XSA
type	bearing
Cone Part Number	X32021XSA
Cup Part Number	Y32021XSA
Metering System	Metric System
Bearing Type	Roller
Roller Bearing Type	Tapered roller
Load Direction	Radial force and axial force
Structure	Single Column
Seal Type	Open
Outer ring type	Standard Type
series	32021X

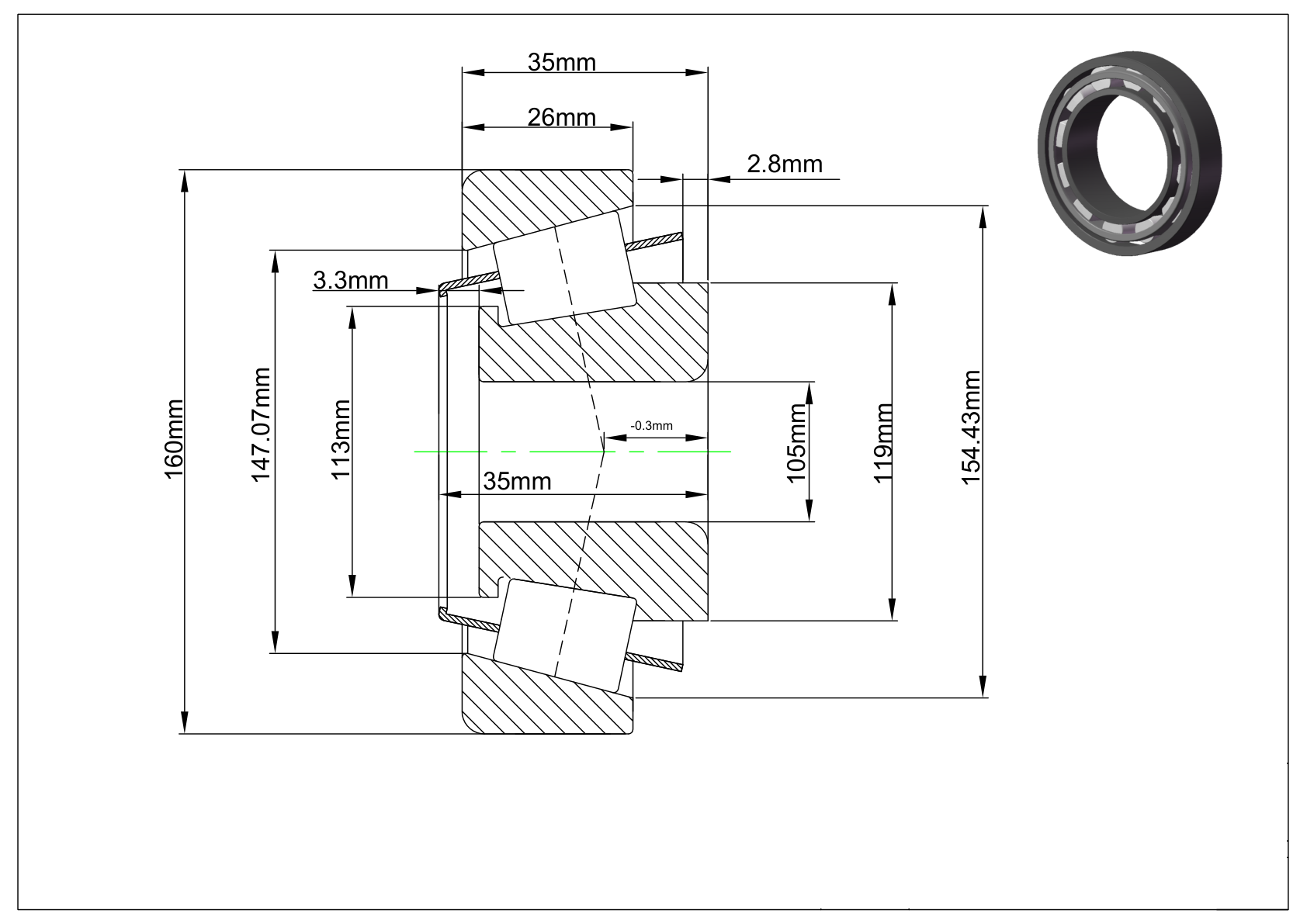

Inside Diameter	105 mm
Inner Diameter Tolerance	-0.02mm to 0
Outer Diameter	160 mm
Outer Diameter Tolerance	-0.025mm to 0
Cone Width	35 mm
Cone Width	-0.15mm to 0
Cup width	26 mm
Cup Width	-0.2mm to 0
Width	35 mm
Width Tolerance	+0.2mm to -0.2mm
Cone back to clearance radius	2.54 mm
Cup back to cleaning radius	2.03 mm
Tapered Front Backing Diameter	113 mm
Tapered backing diameter	119 mm
Cup front backing diameter	154.43 mm
Cup backing diameter	147.07 mm
Cage cone front clearance	3.3 mm
Cage cone back clearance	2.8 mm
Effective central location	-0.3 mm
Ferrule Material	51200 Chrome steel
Roller material	51200 Chrome steel
Cage Material	steel
Dynamic Radial Load	60525 lbf
Static Radial Load	76275 lbf
Dynamic Radial Rating (90 million rpm) (C90)	15705 lbf
Dynamic Thrust Rating (90 million rpm) (Ca90)	11947.5 lbf
Lubricant	Lubricant Added
Temperature Range	-30° to 110 °C
