X33021-Y33021 - Single Row Tapered Roller Bearings - Shandong Zhio bearing Technology Co., LTD

model	X33021-Y33021
type	bearing
Cone Part Number	X33021
Cup Part Number	Y33021
Metering System	Metric System
Bearing Type	Roller
Roller Bearing Type	Tapered roller
Load Direction	Radial force and axial force
Structure	Single Column
Seal Type	Open
Outer ring type	Standard Type
series	33021

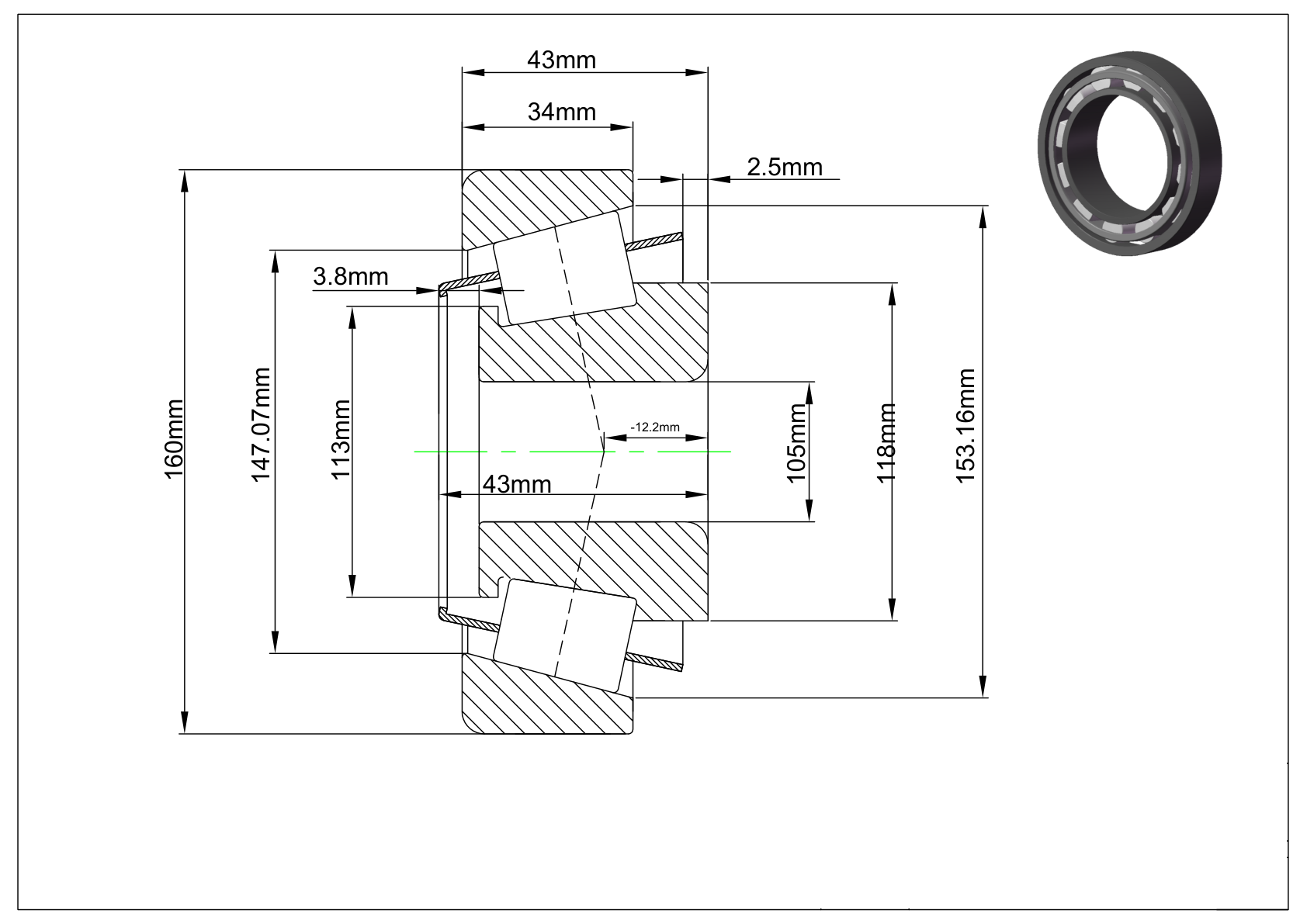

Inside Diameter	105 mm
Inner Diameter Tolerance	-0.02mm to 0
Outer Diameter	160 mm
Outer Diameter Tolerance	-0.025mm to 0
Cone Width	43 mm
Cone Width	-0.15mm to 0
Cup width	34 mm
Cup Width	-0.2mm to 0
Width	43 mm
Width Tolerance	+0.2mm to -0.2mm
Cone back to clearance radius	2.54 mm
Cup back to cleaning radius	2.03 mm
Tapered Front Backing Diameter	113 mm
Tapered backing diameter	118 mm
Cup front backing diameter	153.16 mm
Cup backing diameter	147.07 mm
Cage cone front clearance	3.8 mm
Cage cone back clearance	2.5 mm
Effective central location	-12.2 mm
Ferrule Material	51200 Chrome steel
Roller material	51200 Chrome steel
Cage Material	steel
Dynamic Radial Load	65475 lbf
Static Radial Load	101025 lbf
Dynamic Radial Rating (90 million rpm) (C90)	16965 lbf
Dynamic Thrust Rating (90 million rpm) (Ca90)	8212.5 lbf
Lubricant	Lubricant Added
Temperature Range	-30° to 110 °C
