32326 - Single Row Tapered Roller Bearings - Shandong Zhio bearing Technology Co., LTD

model	32326
type	bearing
Cone Part Number	X32326M
Cup Part Number	Y32326M
Metering System	Metric System
Bearing Type	Roller
Roller Bearing Type	Tapered roller
Load Direction	Radial force and axial force
Structure	Single Column
Seal Type	Open
Outer ring type	Standard Type
series	32326

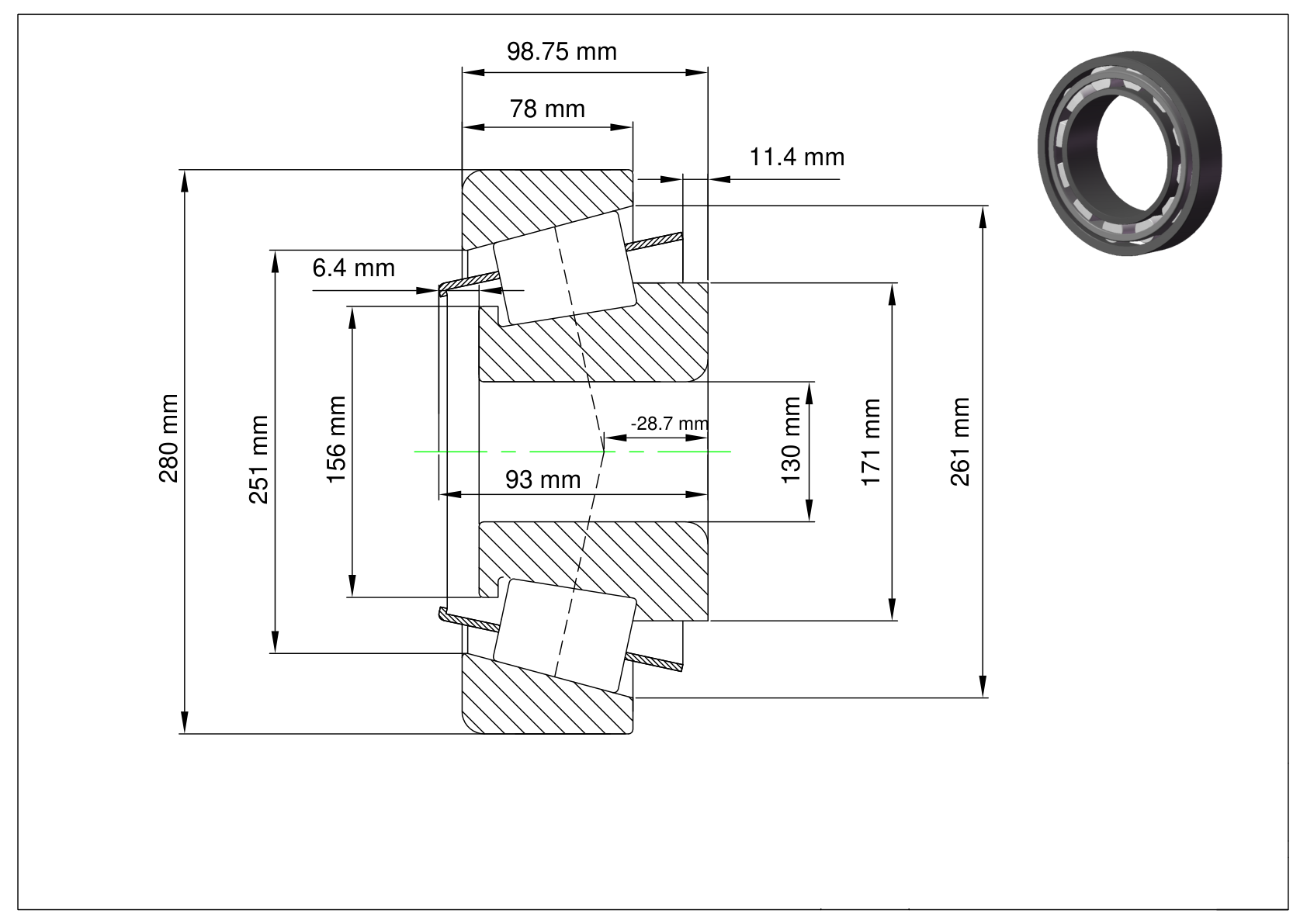

Inside Diameter	130 mm
Inner Diameter Tolerance	-0.025mm to 0
Outer Diameter	280 mm
Outer Diameter Tolerance	-0.035mm to 0
Cone Width	93 mm
Cone Width	-0.2mm to 0
Cup width	78 mm
Cup Width	-0.25mm to 0
Width	98.75 mm
Width Tolerance	+0.35mm to -0.25mm
Cone back to clearance radius	5 mm
Cup back to cleaning radius	5 mm
Tapered Front Backing Diameter	156 mm
Tapered backing diameter	171 mm
Cup front backing diameter	261 mm
Cup backing diameter	251 mm
Cage cone front clearance	6.4 mm
Cage cone back clearance	11.4 mm
Effective central location	-28.7 mm
Ferrule Material	51200 Chrome steel
Roller material	51200 Chrome steel
Cage Material	steel
Dynamic Radial Load	252000 lbf
Static Radial Load	328500 lbf
Dynamic Radial Rating (90 million rpm) (C90)	65475 lbf
Dynamic Thrust Rating (90 million rpm) (Ca90)	38700 lbf
Lubricant	Lubricant Added
Temperature Range	-30° to 110 °C
