JM734449V-JM734410V - Single Row Tapered Roller Bearings - Shandong Zhio bearing Technology Co., LTD

model	JM734449V-JM734410V
type	bearing
Cone Part Number	JM734449V
Cup Part Number	JM734410V
Metering System	Metric System
Bearing Type	Roller
Roller Bearing Type	Tapered roller
Load Direction	Radial force and axial force
Structure	Single Column
Seal Type	Open
Outer ring type	Standard Type
series	M734400

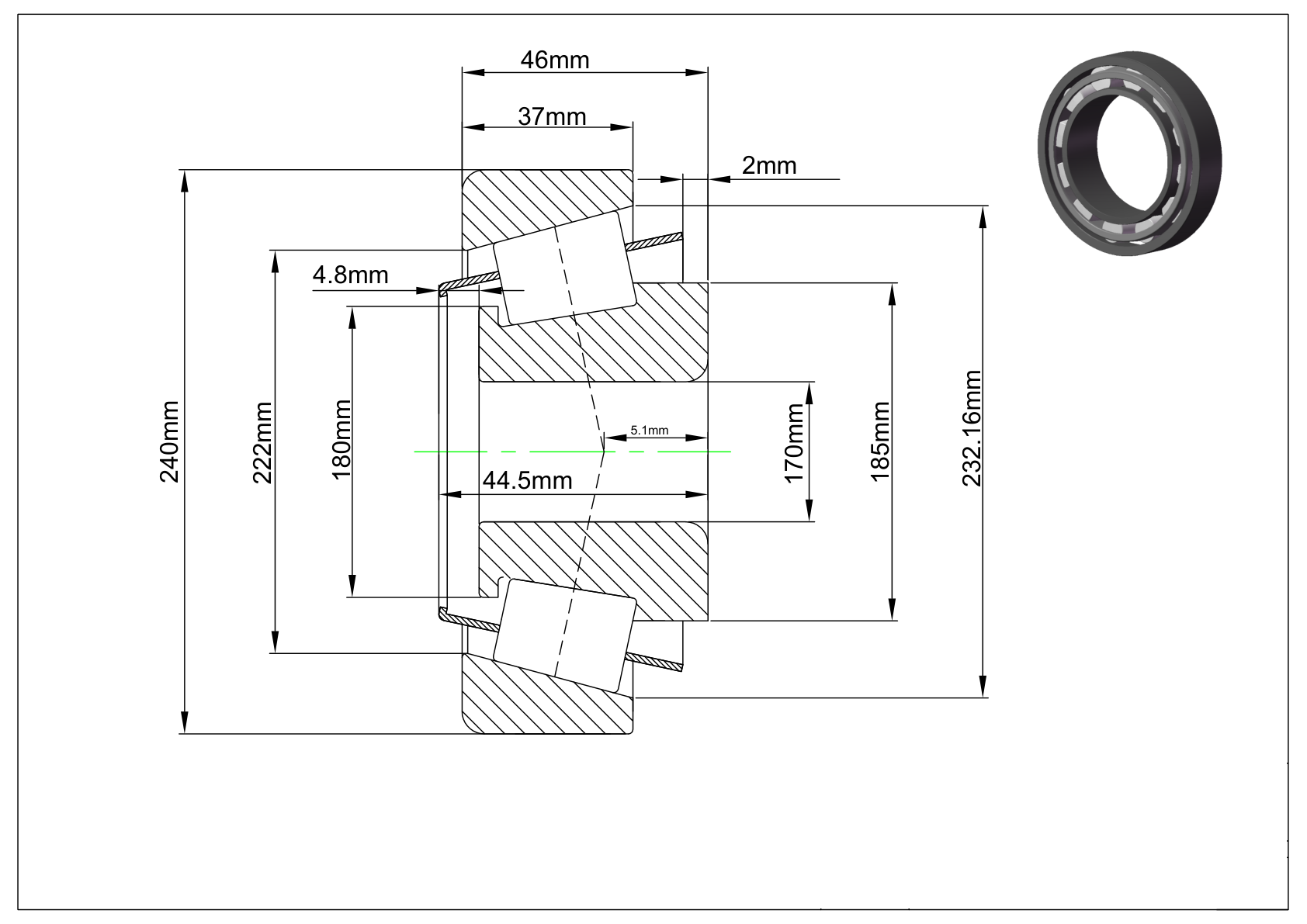

Inside Diameter	170 mm
Inner Diameter Tolerance	-0.025mm to 0
Outer Diameter	240 mm
Outer Diameter Tolerance	-0.03mm to 0
Cone Width	44.5 mm
Cone Width	-0.2mm to 0
Cup width	37 mm
Cup Width	-0.25mm to 0
Width	46 mm
Width Tolerance	+0.35mm to -0.25mm
Cone back to clearance radius	3.05 mm
Cup back to cleaning radius	2.54 mm
Tapered Front Backing Diameter	180 mm
Tapered backing diameter	185 mm
Cup front backing diameter	232.16 mm
Cup backing diameter	222.00 mm
Cage cone front clearance	4.8 mm
Cage cone back clearance	2 mm
Effective central location	5.1 mm
Ferrule Material	51200 Chrome steel
Roller material	51200 Chrome steel
Cage Material	steel
Dynamic Radial Load	103500 lbf
Static Radial Load	170775 lbf
Dynamic Radial Rating (90 million rpm) (C90)	26775 lbf
Dynamic Thrust Rating (90 million rpm) (Ca90)	20092.5 lbf
Lubricant	Lubricant Added
Temperature Range	-30° to 110 °C
