30238 - Single Row Tapered Roller Bearings - Shandong Zhio bearing Technology Co., LTD

model	30238
type	bearing
Cone Part Number	X30238
Cup Part Number	Y30238
Metering System	Metric System
Bearing Type	Roller
Roller Bearing Type	Tapered roller
Load Direction	Radial force and axial force
Structure	Single Column
Seal Type	Open
Outer ring type	Standard Type
series	30238

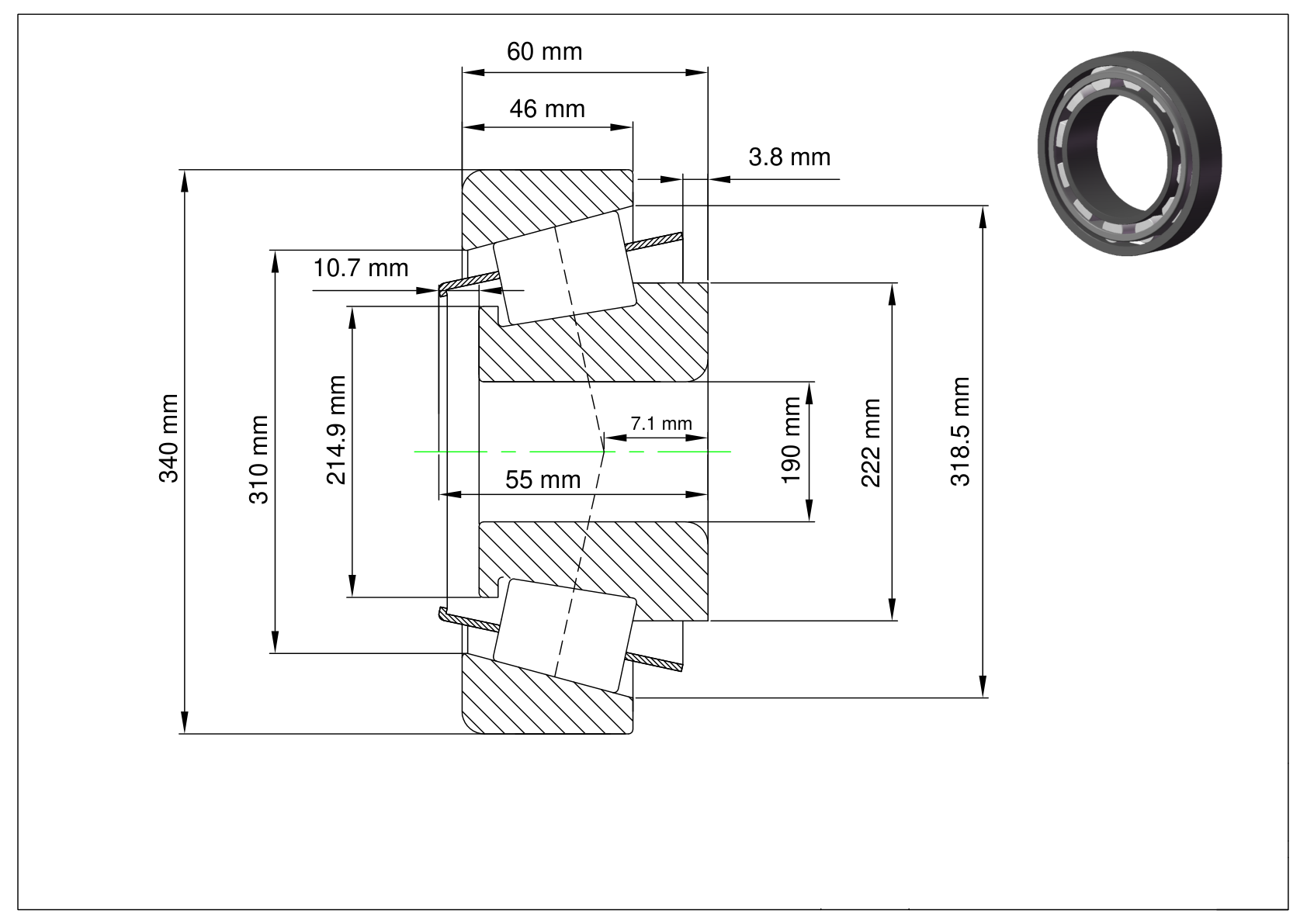

Inside Diameter	190 mm
Inner Diameter Tolerance	-0.03mm to 0
Outer Diameter	340 mm
Outer Diameter Tolerance	-0.04mm to 0
Cone Width	55 mm
Cone Width	-0.2mm to 0
Cup width	46 mm
Cup Width	-0.25mm to 0
Width	60 mm
Width Tolerance	+0.35mm to -0.25mm
Cone back to clearance radius	5 mm
Cup back to cleaning radius	4 mm
Tapered Front Backing Diameter	214.9 mm
Tapered backing diameter	222 mm
Cup front backing diameter	318.5 mm
Cup backing diameter	310 mm
Cage cone front clearance	10.7 mm
Cage cone back clearance	3.8 mm
Effective central location	7.1 mm
Ferrule Material	51200 Chrome steel
Roller material	51200 Chrome steel
Cage Material	steel
Dynamic Radial Load	236250 lbf
Static Radial Load	312750 lbf
Dynamic Radial Rating (90 million rpm) (C90)	61425 lbf
Dynamic Thrust Rating (90 million rpm) (Ca90)	45675 lbf
Lubricant	Lubricant Added
Temperature Range	-30° to 110 °C
